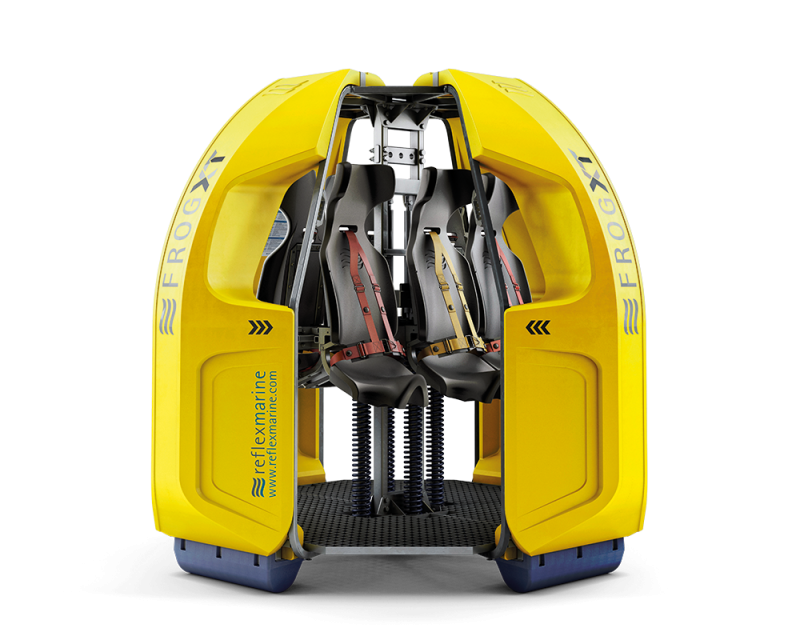

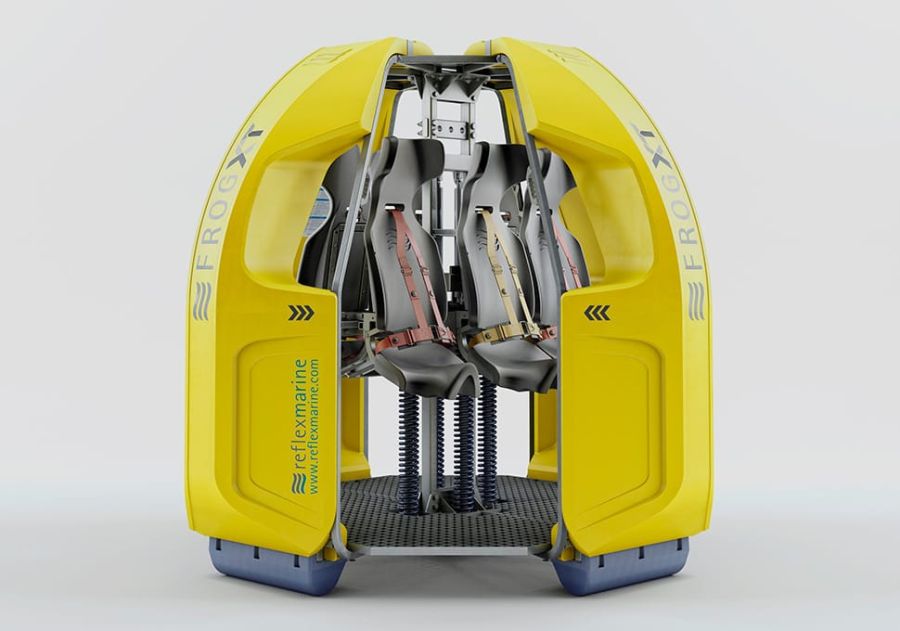

FROG-XT6
Designed for increased passenger capacity within a small footprint, the FROG-XT6 is an ideal medium volume transfer solution.
Features
-
Buoyancy
Thoroughly tested, the FROG-XT's floating and self-righting capabilities provide extensive protection against immersion.
-
Advanced passenger protection
New hybrid, impact absorbing seats with an improved seatbelt design. Enhanced suspension system provides smoother damped motions.
-
Stainless steel frame
Protects passengers from side impacts.
-
Small footprint
The FROG-XT4 and 6 have a smaller footprint for landing and storage and are optimised for transport in a standard container.
-
Load plate
Enhanced rigging protection and easier ‘eye level’ connection for slings improves access for pre-transfer inspections.
-
Shock absorbing feet
EVA Shock Absorbing feet provide passengers with protection against vertical impact.
-
Quick release harness
The improved 3-point quick release harness is easier to put on and provides passengers with protection from whiplash and falling.
-
Spring suspension system
High performance hydro-pneumatic spring damper provides enhanced vertical impact protection.
-
Enhanced performance
Increased capacity and average passenger weight. Increased operating envelope - now up to 4 m significant wave.
-

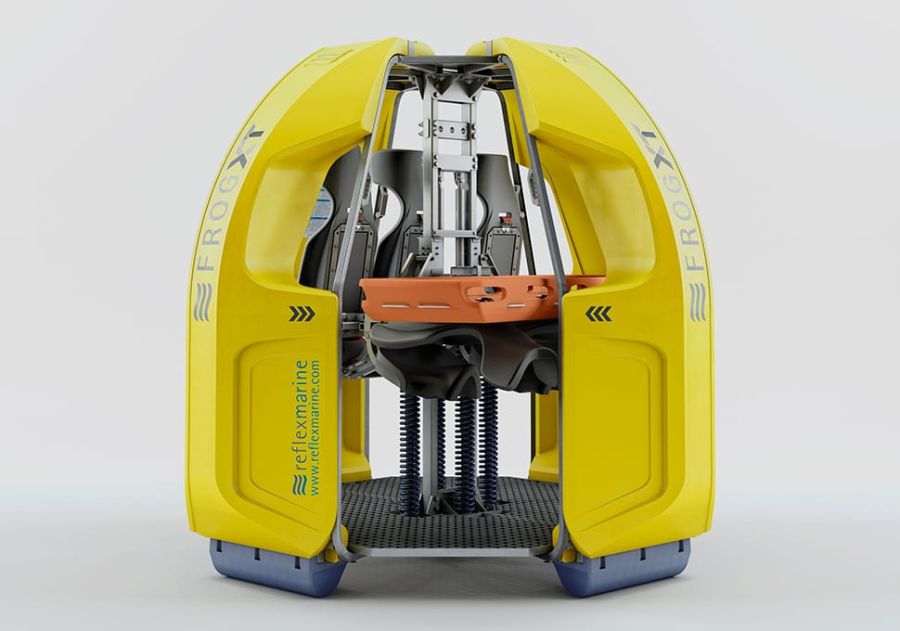

View FROG-XT6 Medevac Mode
Taking just 2 minutes to convert to Medevac mode, the FROG-XT6 can accommodate a casualty and an accompanying seated passenger.
Thoroughly tested, the FROG-XT's floating and self-righting capabilities provide extensive protection against immersion.
New hybrid, impact absorbing seats with an improved seatbelt design. Enhanced suspension system provides smoother damped motions.
Protects passengers from side impacts.
The FROG-XT4 and 6 have a smaller footprint for landing and storage and are optimised for transport in a standard container.
Enhanced rigging protection and easier ‘eye level’ connection for slings improves access for pre-transfer inspections.
EVA Shock Absorbing feet provide passengers with protection against vertical impact.
The improved 3-point quick release harness is easier to put on and provides passengers with protection from whiplash and falling.
High performance hydro-pneumatic spring damper provides enhanced vertical impact protection.
Increased capacity and average passenger weight. Increased operating envelope - now up to 4 m significant wave.
Taking just 2 minutes to convert to Medevac mode, the FROG-XT6 can accommodate a casualty and an accompanying seated passenger.
Why FROG-XT6?
Combining a track record of safety and years of experience with cutting edge transfer technology, the FROG-XT6 has succeeded the original, groundbreaking FROG-6.
This six-person carrier is best suited to medium volume crew transfers and emergency (MedEvac) use. While specifically designed to provide substantially increased transfer rates, the FROG-XT6 retains the small and efficient footprint of the FROG-XT4.
The FROG-XT6 provides reliable protection from the risks associated with heavy landings, falling, side impacts and immersion.
The FROG-XT6:
- Rigorously tested and verified.
- Large operating envelope.
- Same footprint as FROG-XT4 for optimised landing, storage and shipping.
- Easy inspection and maintenance.
- Simple change to MedEvac mode for stretcher casualty.
Accessories and replacement parts
We hold a stock of replacement parts so that your device is ready when you need it, reducing interruption to your operations and lowering packing and freight costs.
You can also purchase a range of accessories, including covers, lights and tools, to accompany your FROG-XT6. These can be included at point of sale, ordered direct, or requested at a later date from your local support centre.
Purchase options
Our products are manufactured in the UK and stocked at both our base in Aberdeen and through our accredited partner network. Each device is supplied fully inspected and maintained, with certification and supporting documents.
If your operations require a transfer device for only a short period of time, or if you’d like to trial one before buying, why not take advantage of our rental option? This can also be a helpful solution when your regular device is being serviced or if circumstances such as adverse weather prevent the use of aviation methods.
Contact our experienced sales team or one of our Approved Partners to find out more about purchasing or renting a FROG-XT6.
Download the User Manual for more information about the FROG-XT6.
| Product | Dimensions | Operational limits | Passengers | Max Gross Weight | Temperature | Features |
|---|---|---|---|---|---|---|
FROG-XT6
|
Dimensions
W1 2110mm / 84"
W2 2110mm / 84" H 2180mm / 86" |
Operational limits
Significant wave height (SWH) up to
4m / 13'1"
Wind speed up to
40 knots / 20m/s
|
Passengers 6 persons or 1 person plus stretcher | Max Gross Weight 1200kg / 2646lbs |
Temperature
Standard
-20°C to +50°C
(-4ºF to +122ºF)
Arctic
-40ºC to +50ºC
(-40ºF to +122ºF) |
Features
|
